AutoPipette
Aim
This project explores semi-automated liquid handling, addressing the fatigue and inconsistency caused by repetitive manual pipetting. The aim was to design a handheld device that reduces reliance on manual technique through motorised actuation and real-time guidance, while keeping the familiar feel of a standard pipette.
Solution
AutoPipette is a semi-automated handheld pipette combining motorised plunger actuation with real-time orientation guidance, closing the gap between manual pipettes and full lab automation at a fraction of the cost.
Click to view PDF Portfolios
The Process
We moved through research, control systems, mechanical engineering and compliance in parallel, each phase informing the next.
Research
Fatigue problems were identified via teardown and morphological analysis of existing pipettes, converging on lead-screw actuation and a familiar handheld form.

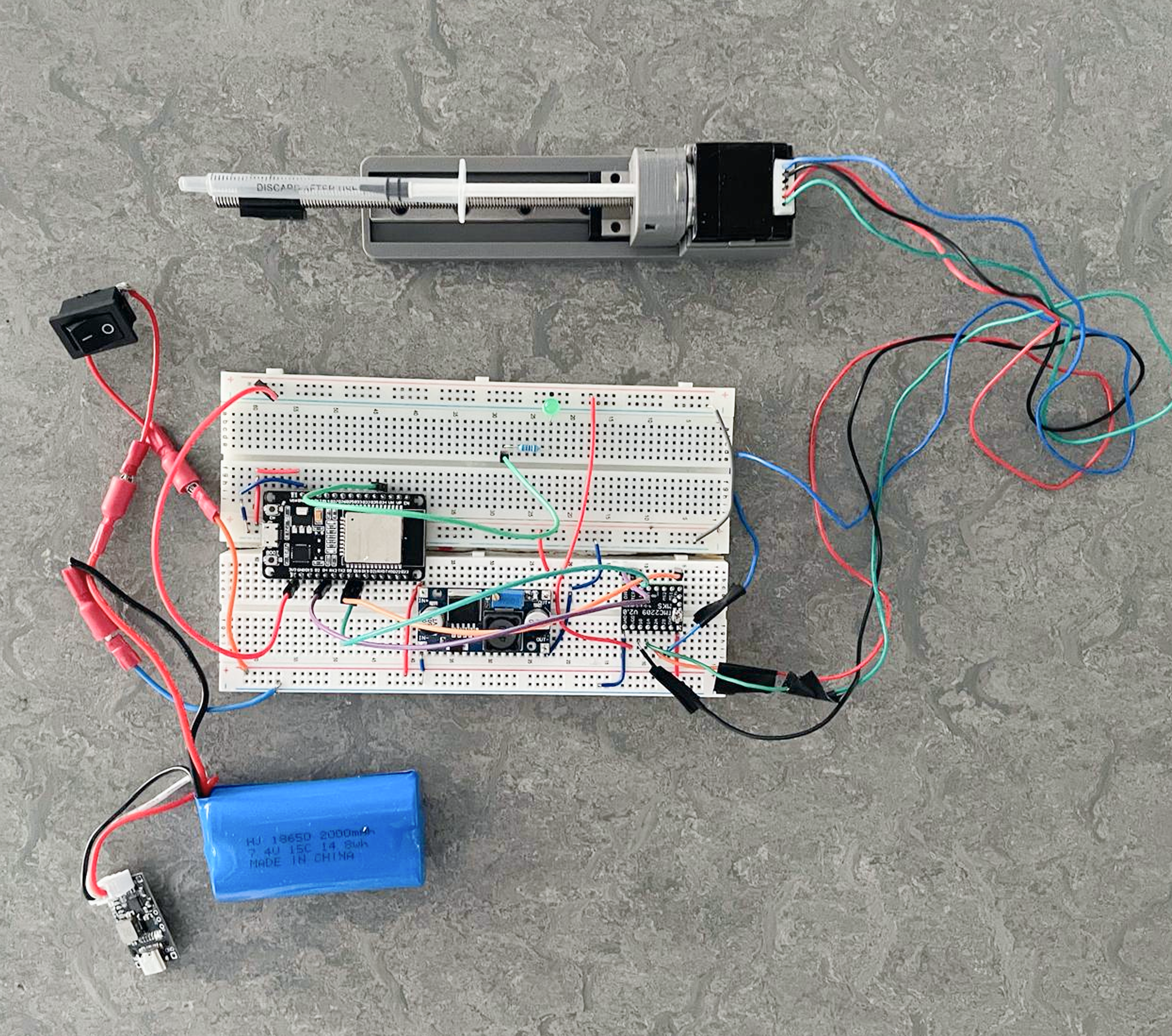

Electromechanics
Force and volume calculations validated the lead-screw drive; iterative seal design solved airtightness, and a custom PCB consolidated control and sensing.

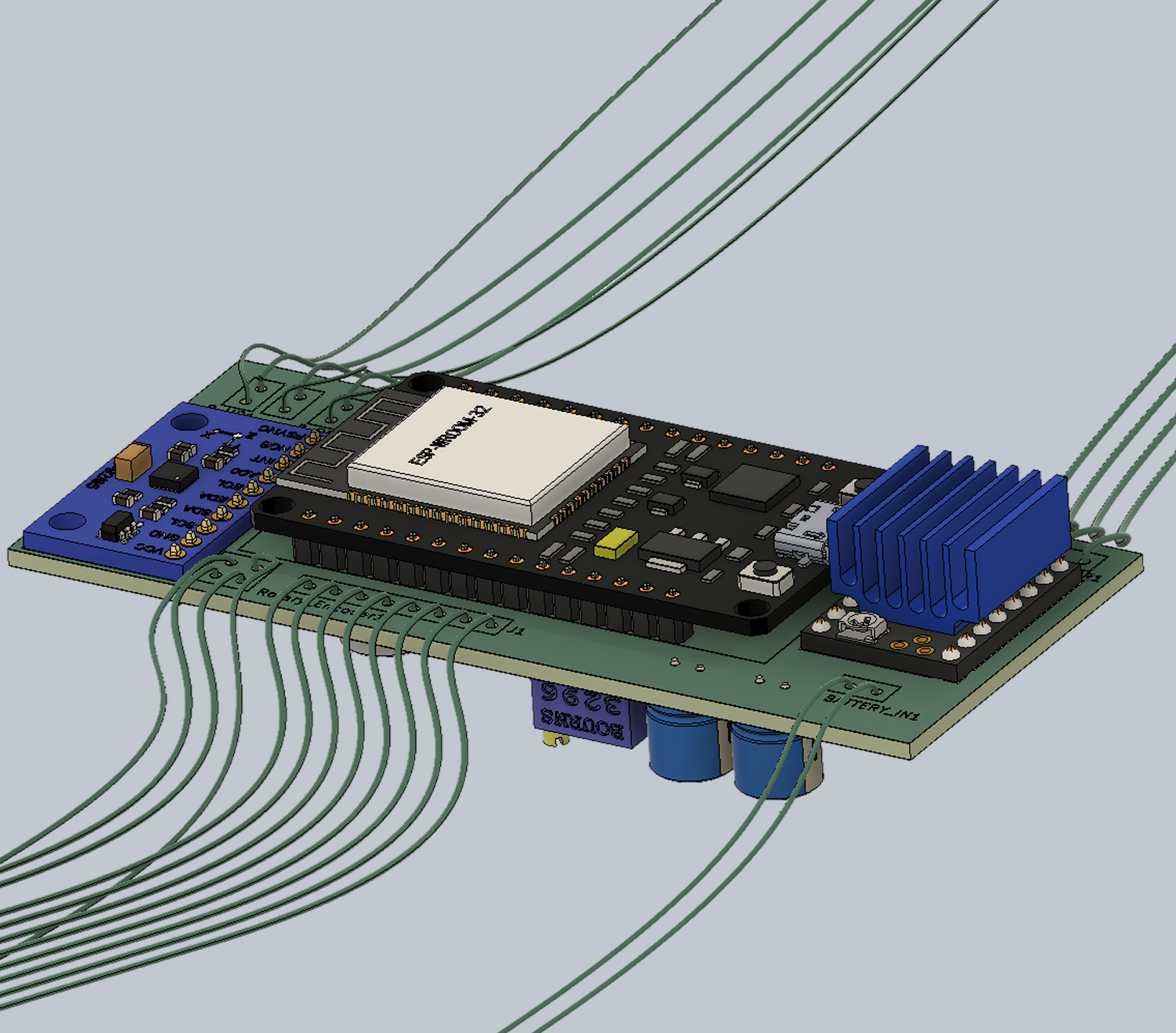

Systems & Control
A complementary filter and finite state machine delivered stable, reliable feedback, verified via breadboard testing before PCB integration.

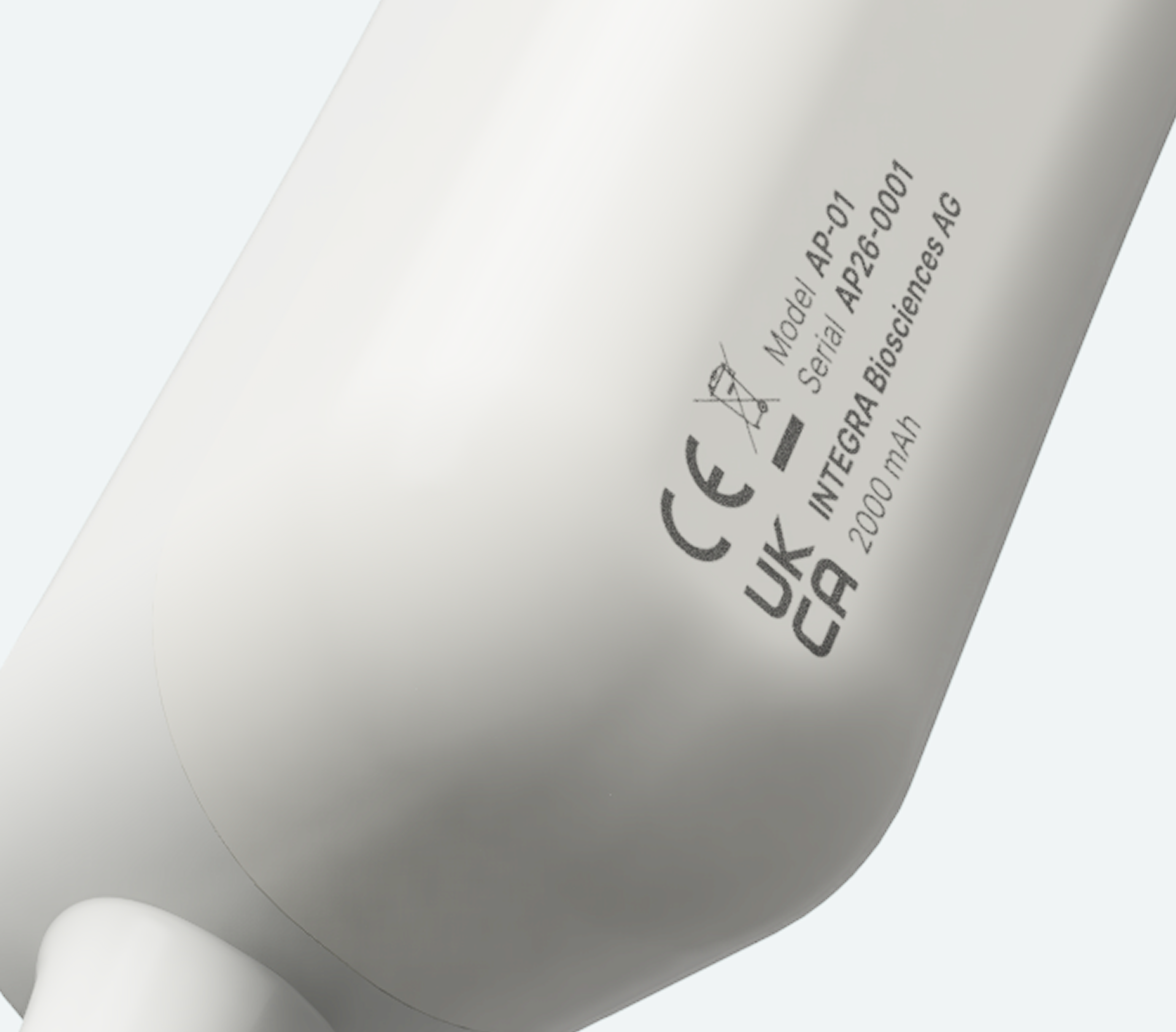

DFMA & Market
DFMA and tolerancing shaped a production-ready design; CE/UKCA/ISO 8655 compliance and branding completed the path to market.
The Details
-
TFT Display
Displays experiment settings and status.
-
Custom PCB
Fully integrated PCB for slim profile and
easy assembly. -
NEMA 11
High-torque stepper motor for precise control.
-
PC Tube + Plunger
Internal air piston that drives liquid up
the pipette tip. -
Guide Rail
Translates rotary motor movement to linear drive.
Flat-Pack Packaging
Folding carton supports efficient stacking
during storage and distribution; the PET insert
prevents damage during transportation.
User Guide
Supports the safe operation, setup and
maintenance of the AutoPipette.
